Animated mechanical locking

Diagram

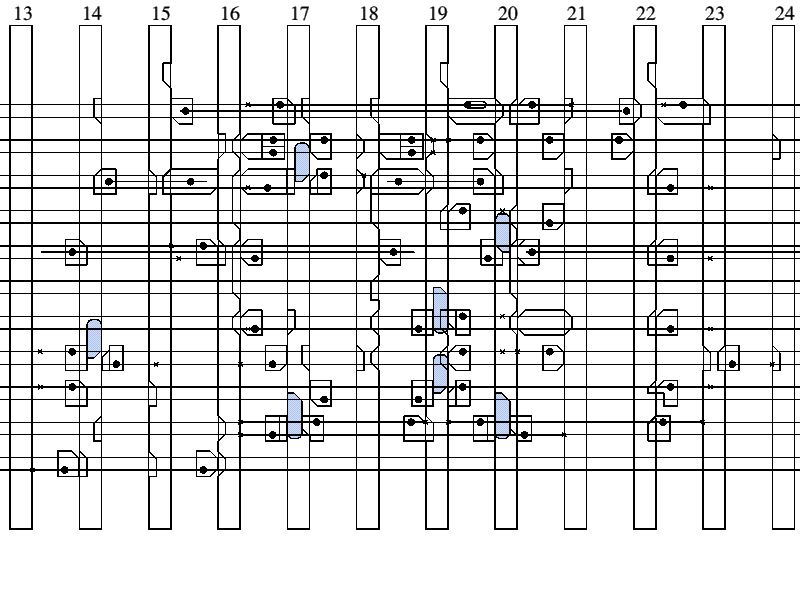

To set the route from the up main to the up branch lever 19 is pulled, driving its tappet downwards. The lock to the right of tappet 19 in channel 4 is moved to the right, drawing bar 1 to the right, locking lever 1 normal. Click here to pull 18.
