Animated mechanical locking

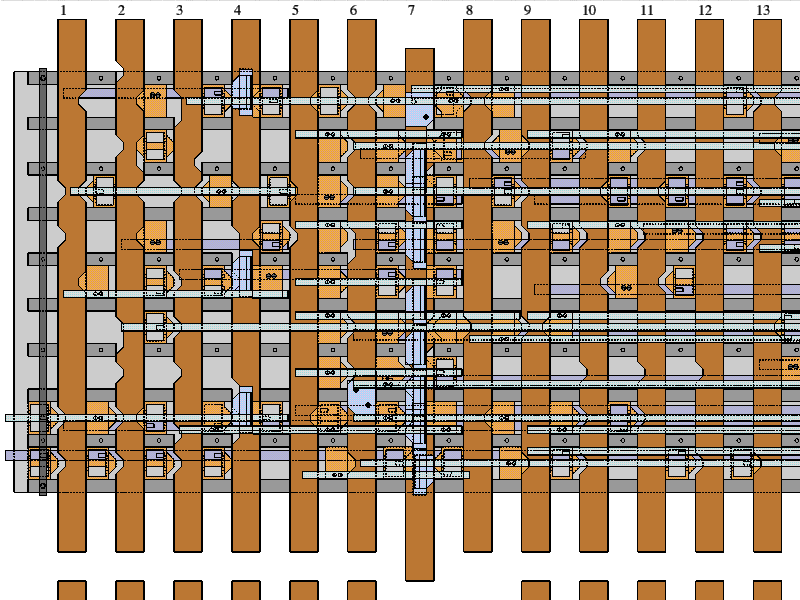

Diagram
Lever 1 is pulled and the signal clears to a 'draw ahead' aspect (lever 1 is locked electrically if levers 6 and 7 are both normal). This locks points 3 and 4 and signal 5.
