Animated mechanical locking

Diagram

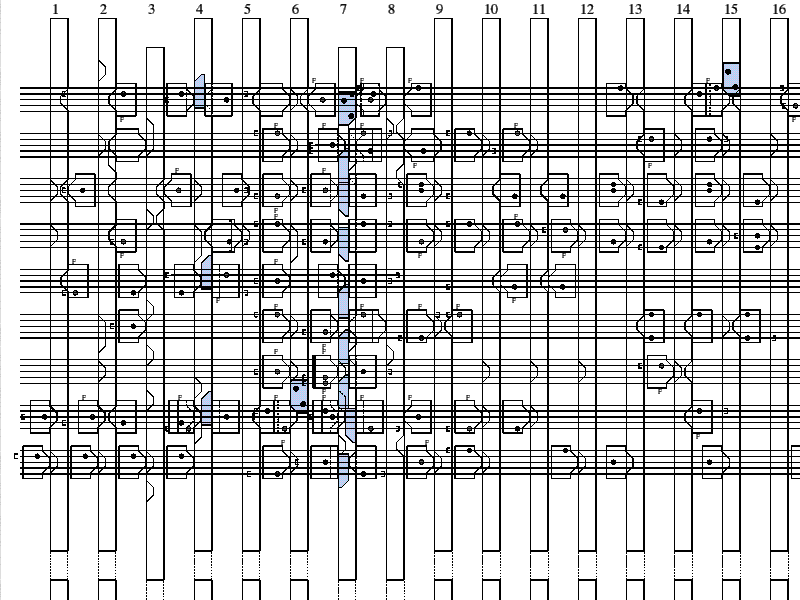

Lever 5 is pulled and as soon as the berth track becomes occupied, the signal clears to a 'draw ahead', 'yellow' or 'green' aspect depending on the track circuit and signal conditions ahead. Levers 3 and 4 are locked as well as lever 7 (points in rear).
